Creating Grouped Filters in the Advanced Search

0 comments

Edited: Oct 18

To create more complex filters that include grouped conditions, you can use the 'Make filter group' checkbox. They make the filter creation process more efficient and allow you to include multiple sets of conditions in the one search.

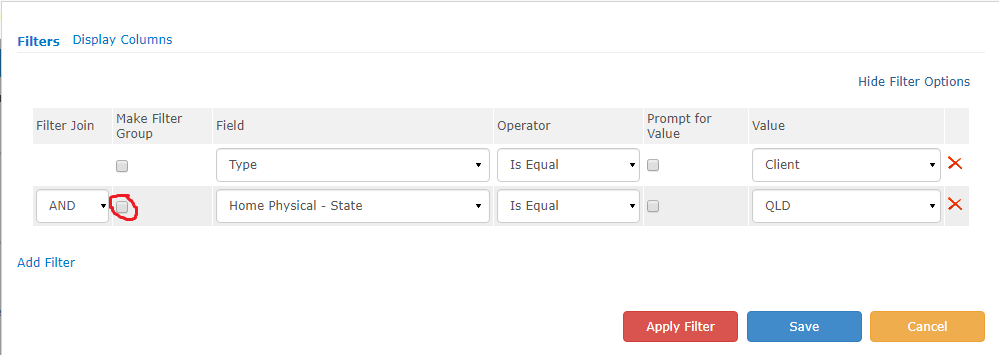

The "Make Filter Group" checkbox in this grid changes the selected row to a filter group. When the row has been made a group you can click the “add condition to filter group” link to add more filters to that group.



You can have multiple group filters, this allows you to set up multiple sets of rules in a single search. For example (Condition 1 AND condition 2) OR (Condition A AND Condition B). Another way to set up group conditions is (Condition 1) AND (Condition 2 or Condition 3 or condition 4). This way you can search for records that meet certain conditions and at least one of the other conditions with the OR joins.
